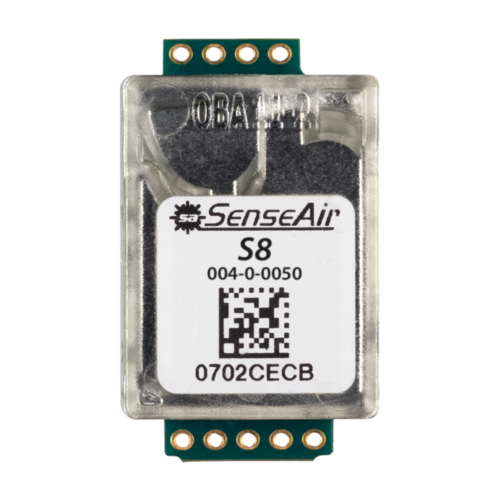

S8 %

Small components and advanced design for control- and alarm applications. The sensor can be integrated into a wide range of different alarm applications where you want to detect CO₂, such as leakage detection.

Defining attributes

  • Miniature size
  • Easy integration
  • Individually calibrated
  • Maintenance free
  • Long term stability

These sensors has excellent performance with both high accuracy and low power consumption. S8 5% & 2% are designed for high volume production with full traceability by sensor serial number on all manufacturing processes and key components. Every sensor is individually calibrated and is provided with a UART digital interface. The sensors are maintenance-free and has an estimated life time of more than 15 years.

S8 5% &2% are intended for applications where very high levels of CO₂ have to be measured reliably and accurately, such as alarms.

Article number 004-0-0017
Operating principle Non-dispersive infrared (NDIR)
Measured gas CO₂
Measurement range 0 to 5% volume
Accuracy ±200 ppm ±10% of reading
Operating range RH <85 % RH
Operation range °C 5 - 50 °C
Warm-up time TBA
Response time <2 minutes by 90%
Power supply 4.5 - 5.25 V
Peak current 300 mA
Average current 30mA
Communication Modbus protocol, UART
Outputs TBA
Compliance TBA
Maintenance Maintenance free
Life expectancy >15 years
Dimensions 33.9 x 19.8 x 8.7 mm (L x W x H)
Weight 8 g
Storage conditions -40-70 °C

Disclaimer : Please refer to product specification for the complete technical details.

Article number Product Description
004-0-0050 S8 2% Miniature sensor for control- and alarm applications.
004-0-0010 S8 Commercial Miniature sensor for control- and alarm applications.
004-0-0013 S8 Residential Miniature sensor for control- and alarm applications.
004-0-0010 S8 Commercial For connection by pin headers
(for ventilation control and CO2 monitoring
004-0-0013 S8 Residential For connection without pin headers (for ventilation control and CO2 monitoring)
004-0-0056 S8 Residential For connection by pin headers (for ventilation control and CO2 monitoring)
004-0-0017 S8 5% For connection by pin headers (for control and alarm applications)
004-0-0053  S8 LP For applications where both energy consumption and accuracy are critical factors
Product Product number
Evaluation Kit / SADK 00-0-0101
