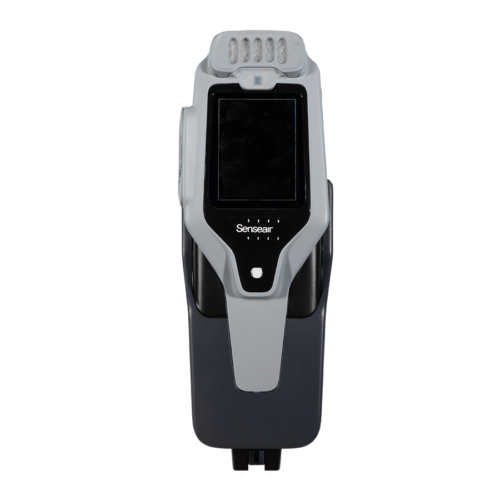

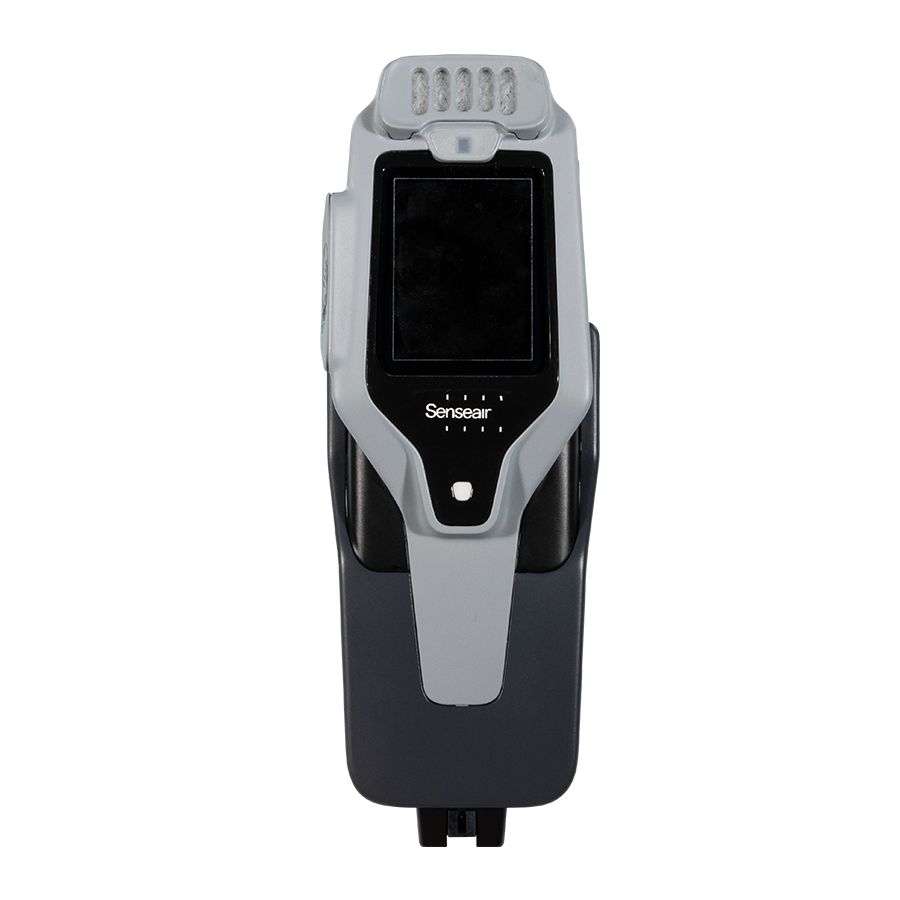

Senseair Go

Senseair Go is a touch free alcohol interlock that puts the user in focus. The device operates mouthpiece free, enabling easy and effortless breath alcohol testing for safer vehicle operation.

The device is connected through its relay outputs to the vehicle allowing the driver to start the vehicle. Senseair Go is prepared for SafeStart cloud service which adds more smart features such as identified users, green time and instant messages etc.

The quick testing process is designed with fast screening and hygiene in mind, while maintaining accurate results. The self-calibrating sensor ensures minimal maintenance, and the mouthpiece free design minimizes plastic waste and long-term costs.

Defining attributes

Effortless use
Contactless / Touch free
No mouthpiece
Rapid testing
Long lifetime
Immunity to poisoning
Self Correcting
Low total cost of ownership
SafeStart prepared

Article number	008-15-0014
Operating principle	Non-dispersive infrared (NDIR)
Measured gas	Ethanol
Measurement range	0–4mg/L
Accuracy	±7.5% or ±0.015 mg/L
Operating range RH	<95 % RH
Operation range °C	-40 - 85 °C
Compliance	SAE-J3214 (Compliance measurement performance) CE-mark , RoHS, Reach, WEEE
Weight	1.4kg
Measurement unit	BrAC, mg/L
Precision (BrAC)	5% of reading or 0.015 mg/L
Power supply	12 V / 24 V DC
Power consumption	120 W, 6 W steady state
IC Card standard	MIFARE Classic
Dimensions, handset [mm]	218x77×47
Dimensions, box [mm]	234×97×35
Screen display	LCD Colour Display 2.4”
Recommended Service Interval	24 months
Consumables	Particle Filter
Relay outputs	3 × mechanical relays used for locking function
Inputs	3 × GPIO

Go

User Manual

Product Compliance

Tools

Tool: Senseair Alcohol Screener Configurator

Article number	Product	Description
840-00036	Communication cable	Length: 1,5 m ± 5 cm
840-00035	Power cable	Length: 1,5 m ± 5 cm
840-00037	Relay cable	Length: 1,5 m ± 5 cm
415-00001	Particle filter	32x16mm
