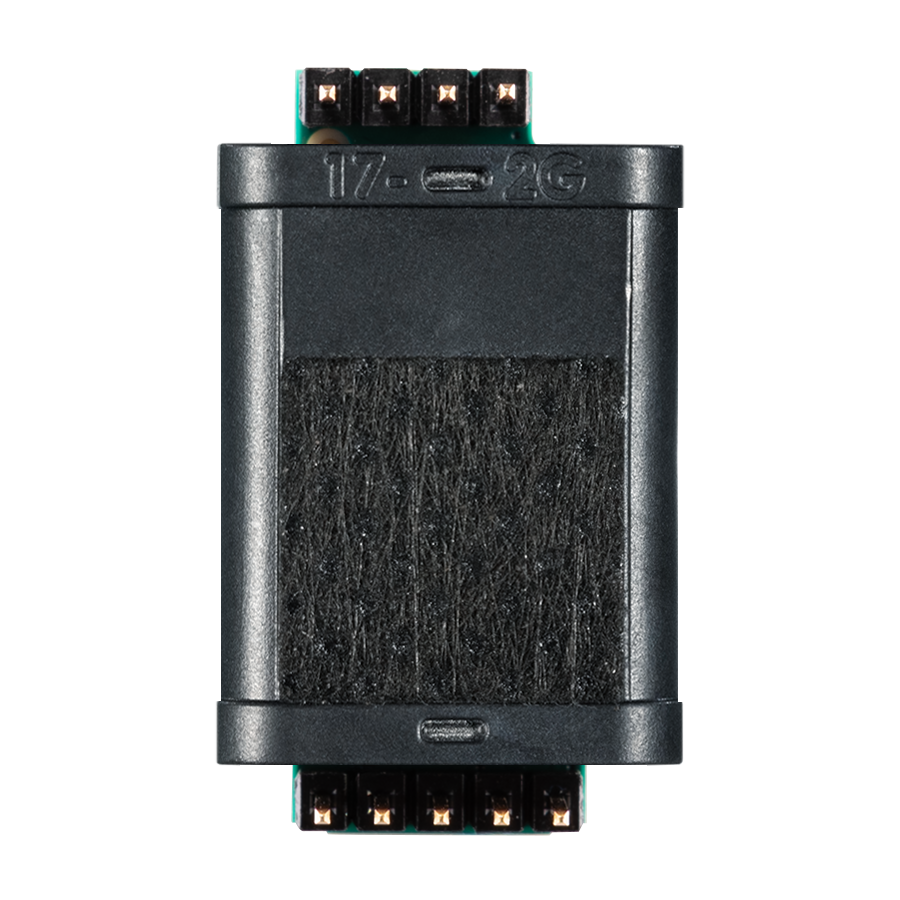

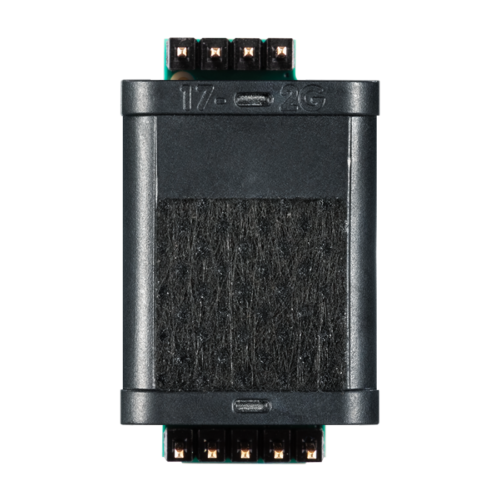

Sunlight CO₂ 2%

Senseair Sunlight CO₂ 2% is designed for applications where CO₂ measurement is required at higher concentration levels, beyond typical comfort monitoring, and where long-term stability and low power consumption are essential. It is suited for systems such as fire alarms, monitoring of enclosed or refrigerated spaces, and other installations where elevated CO₂ levels are used as an operational or safety-related indicator.

Defining attributes

Extremely power efficient
Wide operating range
Self Correcting
High Precision
Robust
Mass produced
Easy integration

The sensor is based on a solid-state NDIR design with no moving parts, supporting stable performance in permanently installed equipment and in environments exposed to vibration and temperature variation. Automatic baseline correction enables maintenance-free operation over a long service life, making the sensor suitable for installations with limited access for recalibration.

Senseair Sunlight CO₂ 2% is developed for embedded systems and volume production, with a compact format and defined operating behaviour that support predictable system-level performance over time.

Article number	006-1-0104
Operating principle	Non-dispersive infrared (NDIR)
Measured gas	CO₂
Measurement range	0–20 000 ppm
Accuracy	±50 ppm ±5 % of reading
Operating range RH	<85 % RH
Operation range °C	-40 - 50 °C
Warm-up time	0s
Response time	<30s
Power supply	3.05 - 5.5 V
Peak current	100 mA
Average current	1–34µA
Communication	I2C, UART
Outputs	Digital
Compliance
Maintenance	Maintenance-free
Life expectancy	>15 years
Dimensions	34 x 21 x 12 mm (L x W x H)
Weight	5 g
Storage conditions	-40 – 50°C

Article number	Product	Description
006-1-0100	Sunlight CO₂	An extremely power efficient CO₂ sensor.
006-1-0101	Sunlight CO₂ PH — 13.46	Over all length 13.46 mm
006-1-0102	Sunlight CO₂ PH — 8.51	Over all length 8.51 mm
